vATIS Guide
What is vATIS?
vATIS is an easy-to-use ATIS solution designed specifically for the VATSIM Network. It offers a simple and intuitive interface that allows users to create and broadcast ATIS messages quickly and easily.
Congrats on your new controller rating! To get started on controlling we want to connect an ATIS. An ATIS is a quick way to pass aerodrome information automatically.
VATSIM CoC
As per VATSIM CoC C7(a), any ATCS signed on as a Local Local (Tower), Ground, or Clearance Delivery should only provide an ATIS for their primary aerodrome.
Furthermore, an ATIS can only be connected if the real world counterpart has an ATIS. As a result, vATIS profiles are not made for all airports within our airspace
More information, and all policies regarding ATIS connection can be found in the VATSIM Code of Conduct and the ATC Frequency and Information Management Policy
Our resources page, where you can find the vATIS profiles for all of the South African link can be found here
Setting up vATIS

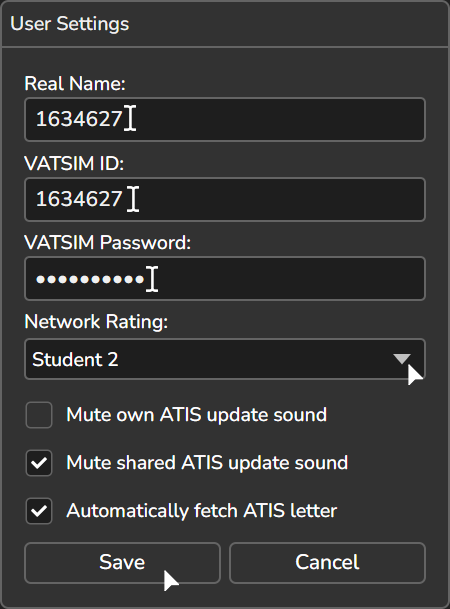

- Input your VATSIM Details
- Your Real Name
- Your VATSIM CID
- Your VATSIM Password
- Your Network Rating
Importing and Connecting an ATIS

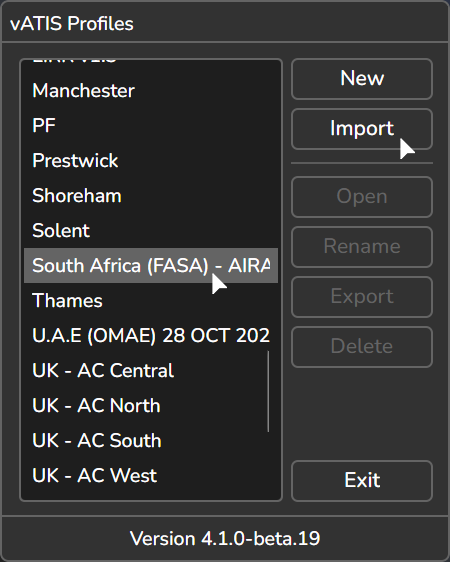

- Open vATIS, press the 'Import' button then select the vATIS profile you have downloaded.
-
Once imported, double click on the profile to open it.
-
Once in the profile, select on the airport you are controlling.

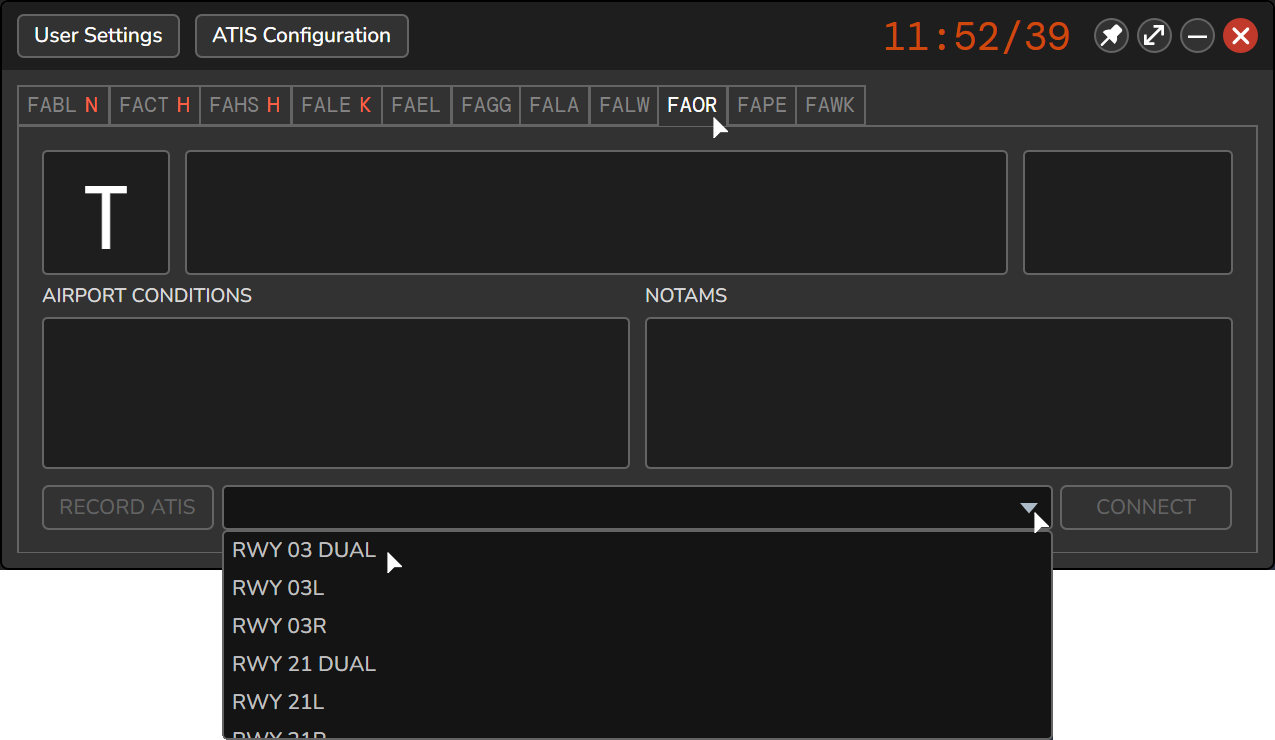

- Open the presets dropdown, and select the optimal runway configuration.

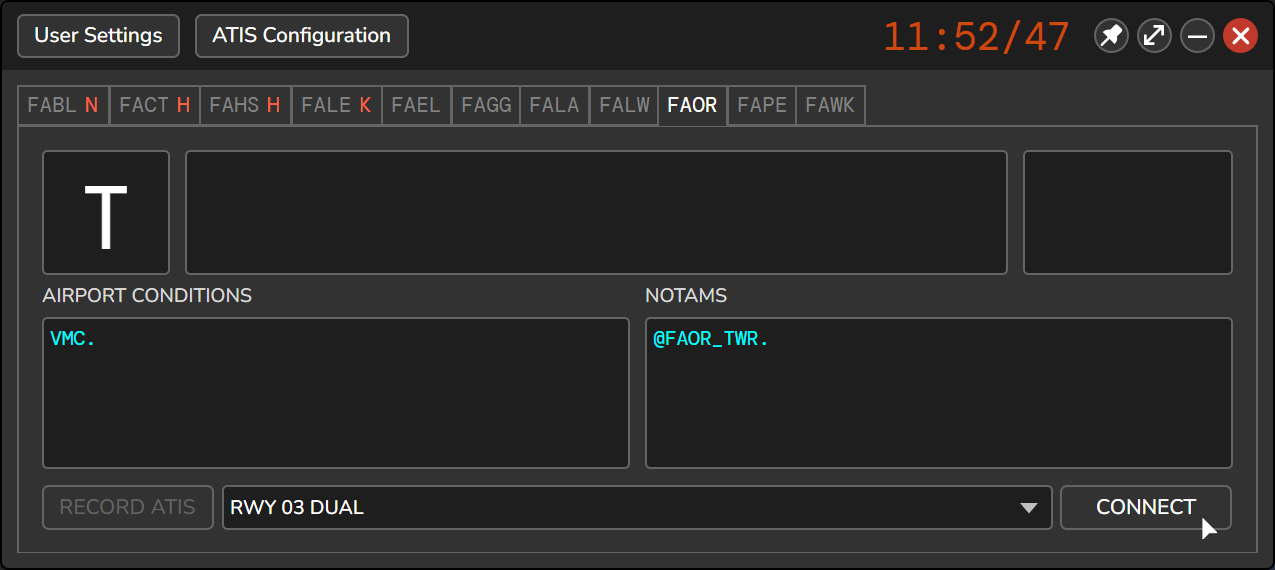

- Once you have selected a preset, press the connect button the connect the ATIS to the VATISM network.

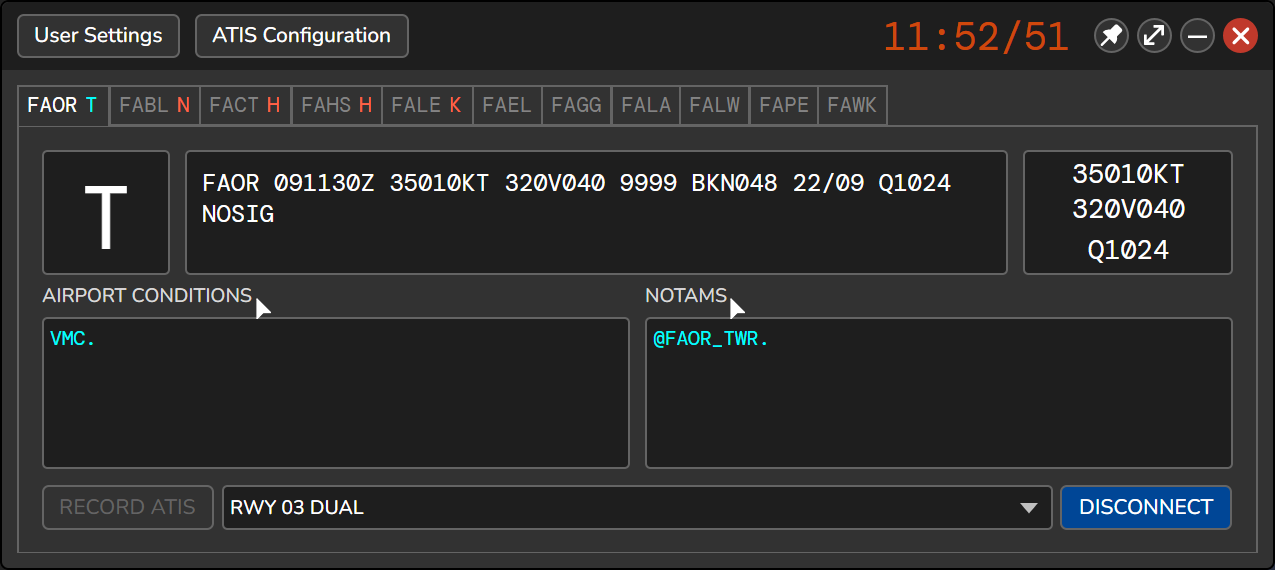

Airport Conditions and NOTAMS
- Within VATSSA we utilise the vATIS Airport Conditions and NOTAMs features in our ATIS's. To select and choose any conditions that you may want, click on the AIRPORT CONDITION or NOTAMS text.

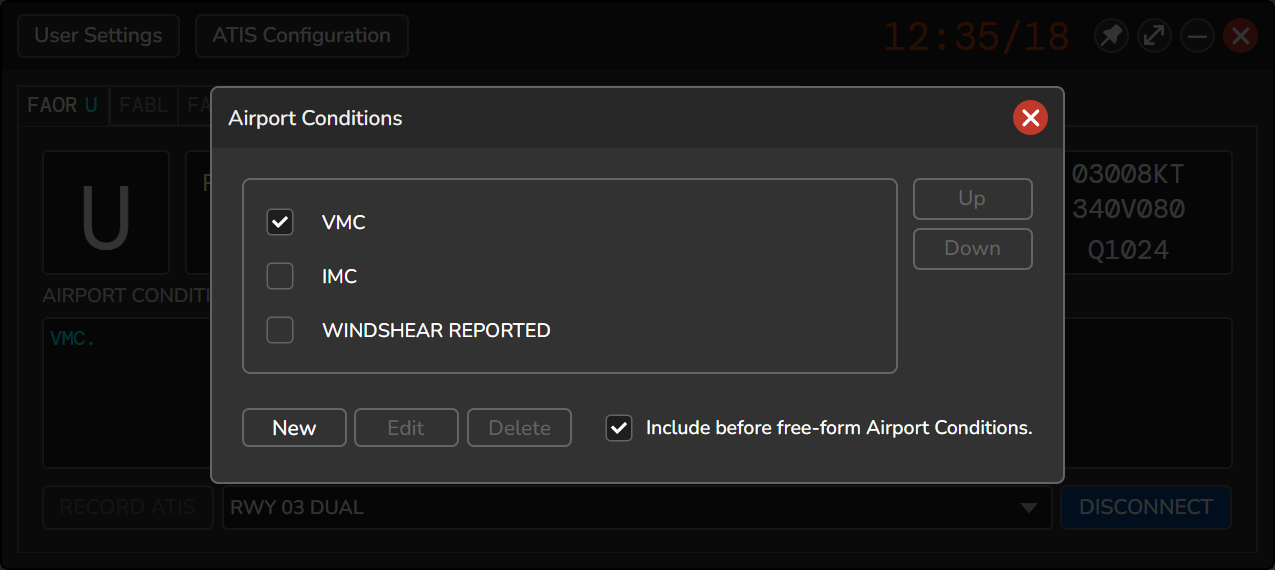

Airport Conditions
Airport Conditions should be chosen on the current state of the airport. This can be dependent on Pilot Reports (PIREPS) or the METAR
VMC
Text: EXP ZONE VMC.
Voice: EXPECT ZONE V M C
IMC
Text: EXP ZONE IMC.
Voice: EXPECT ZONE EYE EM CEE
WINDSHEAR REPORTED
Text: WINDSHEAR REPORTED
Voice: WINDSHEAR REPORTED

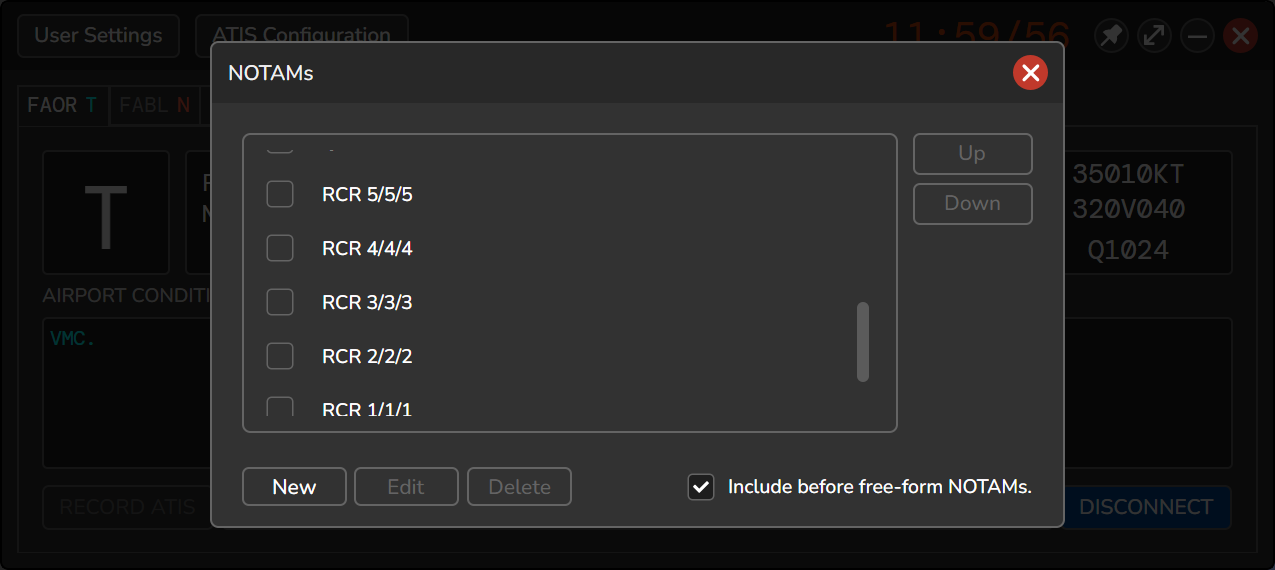

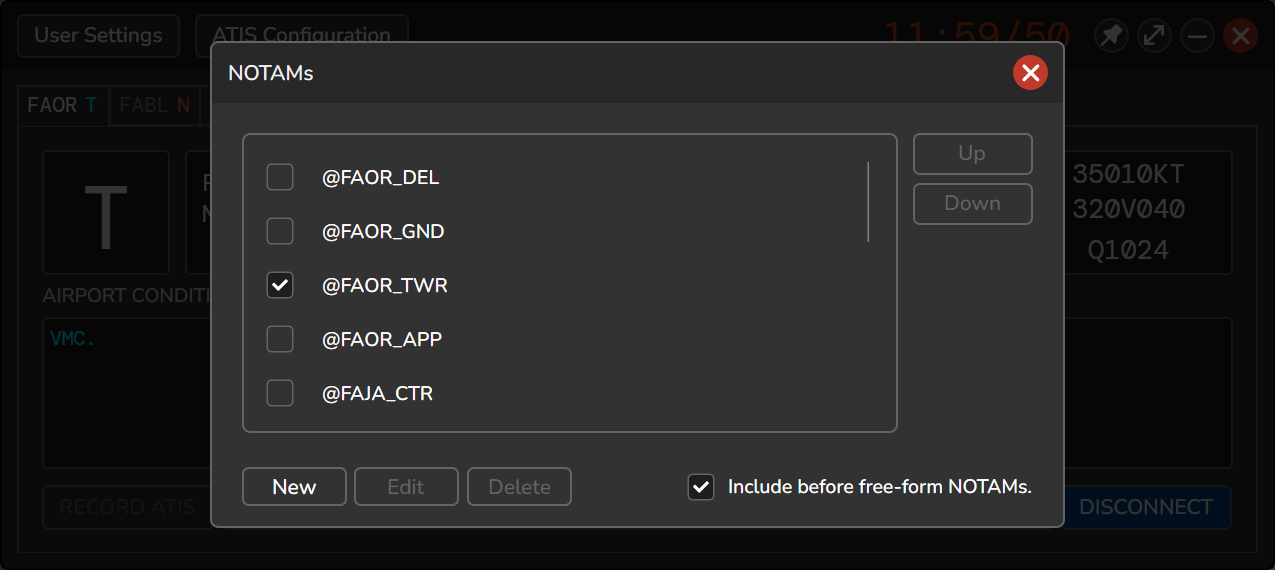

NOTAMS
@FAOR_DEL
Text: CLEARANCE DELIVERY FREQUENCY 121 DECIMAL 7
Voice: CLEARANCE DELIVERY FREQUENCY WUN TOO WUN DAY SEE MAL SEVEN
@FAOR_GND
Text: CLEARANCE DELIVERY FREQUENCY 121 DECIMAL 9
Voice: CLEARANCE DELIVERY FREQUENCY WUN TOO WUN DAY SEE MAL NINER
@FAOR_TWR
Text: CLEARANCE DELIVERY FREQUENCY 118 DECIMAL 1
Voice: CLEARANCE DELIVERY FREQUENCY WUN WUN AIT DAY SEE MAL WUN
@FAOR_APP
Text: CLEARANCE DELIVERY FREQUENCY 124 DECIMAL 5
Voice: CLEARANCE DELIVERY FREQUENCY WUN TOO TREE DAY SEE MAL FIFE
@FAJA_CTR
Text: CLEARANCE DELIVERY FREQUENCY 134 DECIMAL 4
Voice: CLEARANCE DELIVERY FREQUENCY WUN TREE FOWER DAY SEE MAL FOWER
@FAJA_NW_CTR
Text: CLEARANCE DELIVERY FREQUENCY 126 DECIMAL 7
Voice: CLEARANCE DELIVERY FREQUENCY WUN TOO SIX DAY SEE MAL SEVEN
@FAJA_SW_CTR
Text: CLEARANCE DELIVERY FREQUENCY 128 DECIMAL 3
Voice: CLEARANCE DELIVERY FREQUENCY WUN TOO AIT DAY SEE MAL TREE
@FAJA_SE_CTR
Text: CLEARANCE DELIVERY FREQUENCY 132 DECIMAL 150
Voice: CLEARANCE DELIVERY FREQUENCY WUN TREE TOO DAY SEE MAL WUN FIFE ZERO
@FASA_CTR
Text: CLEARANCE DELIVERY FREQUENCY 128.325
Voice: CLEARANCE DELIVERY FREQUENCY WUN TOO AIT DAY SEE MAL TREE TOO FIFE
@666
Text: RCR 6/6/6
Voice: RUNWAY CONDITION REPORT SIX, SIX, SIX
@555
Text: RCR 5/5/5
Voice: RUNWAY CONDITION REPORT. FIVE, FIVE, FIVE
@444
Text: RCR 4/4/4
Voice: RUNWAY CONDITION REPORT. FOUR, FOUR, FOUR
@333
Text: RCR 3/3/3
Voice: RUNWAY CONDITION REPORT. THREE, THREE, THREE
@222
Text: RCR 2/2/2
Voice: RUNWAY CONDITION REPORT. TOO, TOO, TOO
@111
Text: RCR 1/1/1
Voice: RUNWAY CONDITION REPORT. FIVE, FIVE, FIVE
@000
Text: RCR 0/0/0
Voice: RUNWAY CONDITION REPORT. ZERO, ZERO, ZERO
Still having issues with vATIS? Feel free to ask for help in one of our channels in the VATSSA Discord server which can be found in the VATSIM Community Server's
