Overview
FAOR_APP will be the main station responsible. Controllers are not to log on FAOR_W_APP without Southeast Radar already being present.
FAOR_F_APP is only to log on with the presence of: - Johannesburg Radar (FAOR_APP) - O.R. Tambo Tower (FAOR_TWR)
Both stations must be online for a Director to be permitted to log on in any scenario.
Runway 03s

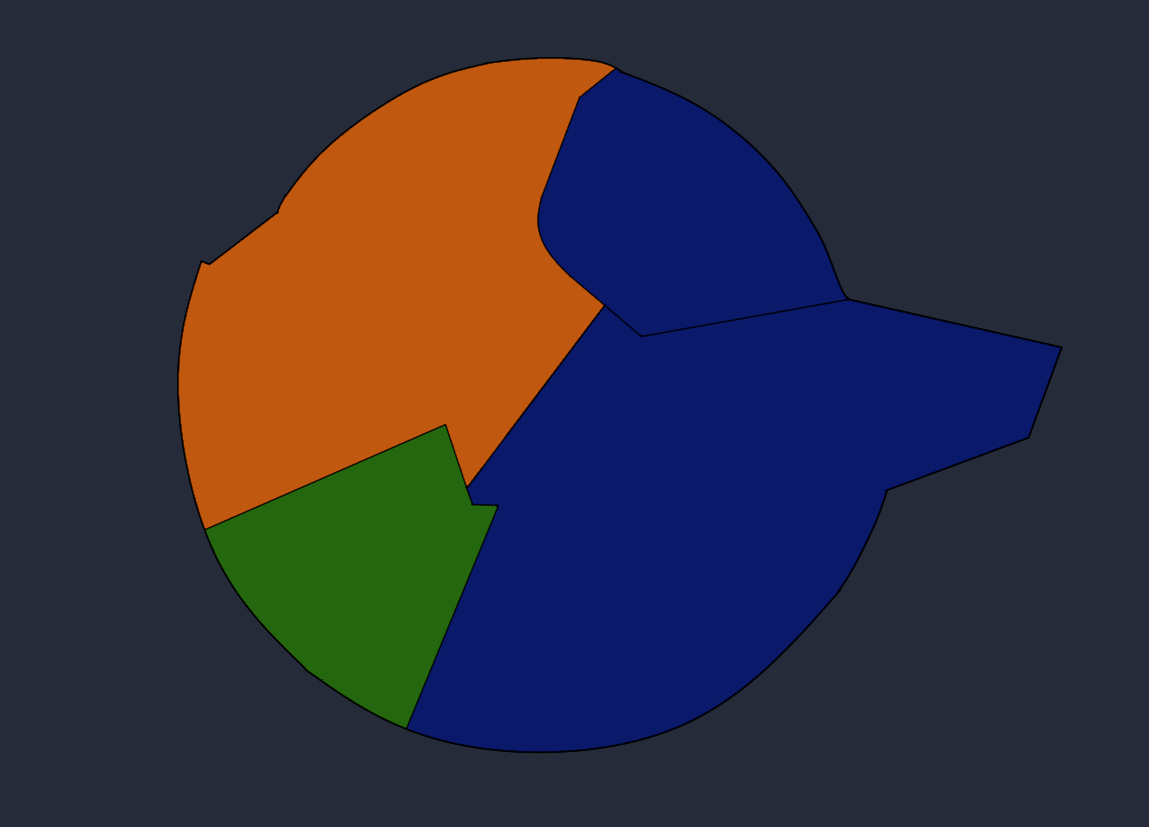

During Runway 03s at Johannesburg, the lateral splits of the TMA are defined below.
The area highlighted in blue represents the AOR of Johannesburg Southeast Radar (FAOR_APP) of this area.
The area highlighted in orange represents the AOR of Johannesburg West Radar (FAOR_W_APP). When offline, FAOR_APP will assume the duties.
The area represented in green represents the AOR of Johannesburg Director (FAOR_F_APP). When offline, FAOR_APP will assume all duties.
Airports
In this configuration, the overlying controller for each airport will be:
FAOR | FAOR_APP FAGM | FAOR_W_APP FAGC | FAOR_W_APP FALA | FAOR_W_APP FAWK / FASK | FAOR_APP FAWB | FAOR_APP
Entry Points
AVAGO | FAOR_W_APP EGPOP | FAOR_W_APP NIBEX | FAOR_F_APP OKPIT | FAOR_APP UNPOM | FAOR_APP UTRUK | FAOR_W_APP WIV | FAOR_APP
Exit Points
APDAK | FAOR_APP EGMEN | FAOR_APP GAV | FAOR_W_APP GEROX | FAOR_APP HGV | FAOR_APP OVALA | FAOR_APP NESAN | FAOR_W_APP RAGUL | FAOR_W_APP VASUR | FAOR_W_APP XAGEN | FAOR_W_APP
Runway 21s

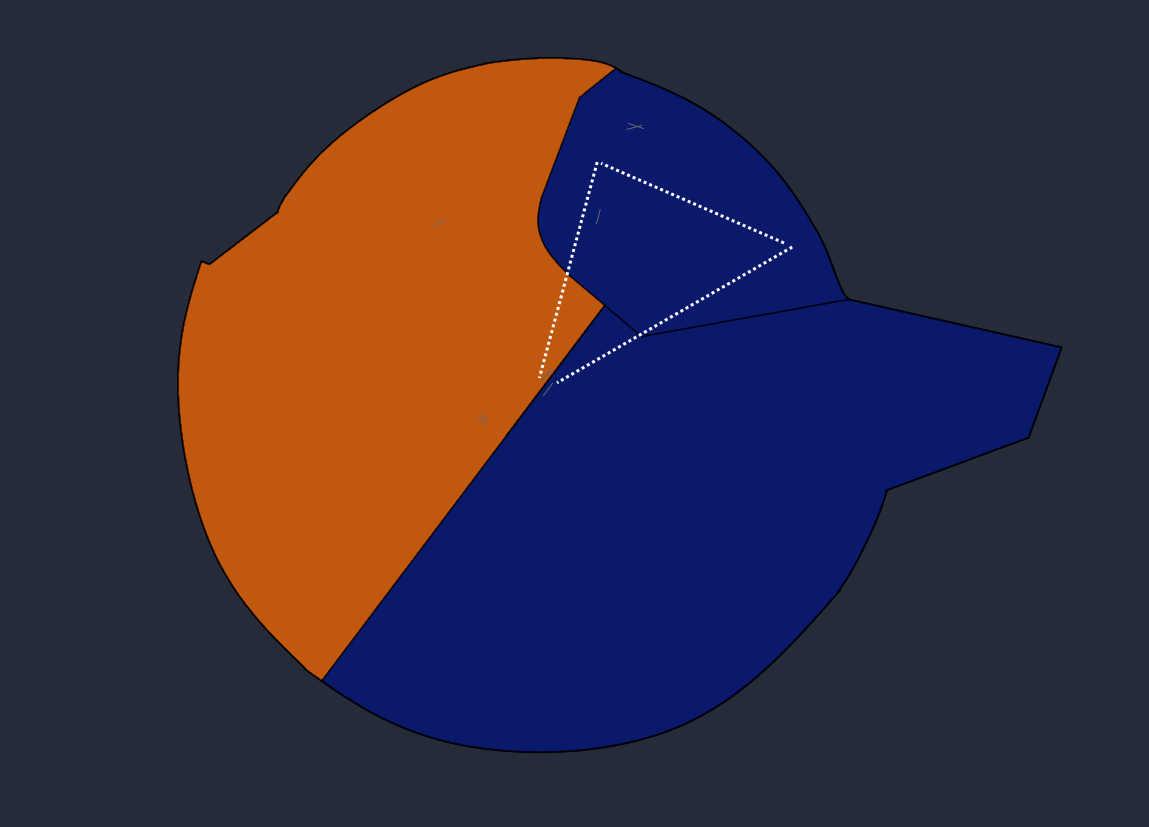

During Runway 21s at Johannesburg, the lateral splits of the TMA are defined below.
The area highlighted in blue represents the AOR of Johannesburg Southeast Radar (FAOR_APP) of this area.
The area highlighted in orange represents the AOR of Johannesburg West Radar (FAOR_W_APP). When offline, FAOR_APP will assume the duties.
The area represented by the dashed lines represents the AOR of Johannesburg Director (FAOR_F_APP). When offline, FAOR_APP will assume all duties.
Airports
In this configuration, the overlying controller for each airport will be:
FAOR | FAOR_APP FAGM | FAOR_W_APP FAGC | FAOR_W_APP FALA | FAOR_W_APP FAWK / FASK | FAOR_APP FAWB | FAOR_APP
Entry Points
AVAGO | FAOR_W_APP EGPOP | FAOR_W_APP NIBEX | FAOR_W_APP OKPIT | FAOR_APP UNPOM | FAOR_APP UTRUK | FAOR_W_APP WIV | FAOR_APP
Exit Points
APDAK | FAOR_APP EGMEN | FAOR_APP GAV | FAOR_W_APP GEROX | FAOR_APP HGV | FAOR_APP OVALA | FAOR_APP NESAN | FAOR_W_APP RAGUL | FAOR_W_APP VASUR | FAOR_W_APP XAGEN | FAOR_W_APP
